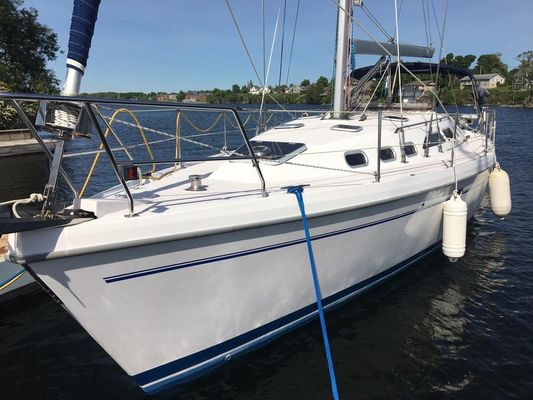

Catalina 380 - main image

2002 Catalina 380

location icon Sackets Harbor, New York, United States
Year 2002
Length 38'5 ft / 11.71 m
Price
$106,500

Very nice well equipped Catalina 380.  Features include Heat & Air, Cruising Spinnaker, Custom Winter Cover with Frame, Newer Genoa, Full Canvas and More!

Specifications

Year Built 2002
Category Sail
Length Overall 38'5 ft / 11.71 m
Beam 12'4 ft / 3.76 m
Max Draft 5'5 ft / 1.65 m
Construction Fiberglass
Hull ID CTYJ0359A202
Keel Winged Keel
Drive Type Direct
Engines 1
Total Engine Power 42 hp
Fuel Tanks 1
Fuel Tank Cap. 34 gal
Water Tanks 1
Water Tank Cap. 90 gal
Holding Tanks 1
Holding Tank Cap. 30 gal
Dry Weight 19,000 lb
Ballast 6,776 lb
Displacement 19,000 lb

Engine 1 Specifications

Make: Yanmar
Model: 3JH3E
Drive Type: Direct
Fuel: Diesel
Engine Power: 42hp
Type: Inboard
Propeller Type: 3 Blade, Bronze
Year: 2002
Engine Hours: 1300
Sail Area

IJPE : 725.92 sq ft
I : 50.92 ft
J : 14.67 ft
P : 44.83 ft
E : 15.67 ft
Working Sail Area : 725.00 sq ft
Keel Details
Keel #1
Keel Type: Wing
Ballast: 7300 lb
Displacement: 19500 sq ft
Max Draft: 5.50 ft
Manufacturer Provided Description
The Catalina 380 is designed to incorporate the performance, accommodations, and features which experienced sailors consider important. All aspects of the Catalina 380 - from the securely stayed rig to the choice of deep or shoal draft keels - reflect a sailing lifestyle. The Catalina 380 is sensibly equipped with an offshore-capable rig with double spreader mast, in-line uppers, intermediates, fore and aft lowers, forestay, and backstay. The inboard shroud base allows for narrow sheeting angles and the ability to carry large genoas. In the cockpit, excellent visibility forward is assured by the low profile ball bearing mainsheet traveler. For the crew, the standard cockpit table comes with two drop leafs, beverage storage, and foot rest. Steering is traditional pedestal layout with stainless guard and a 5-inch compass with stainless binnacle. The wide weather decks are textured nonskid, gently angled surfaces without sharp corners. The oversize stem boarding ladder leads to a hot and cold fresh water shower and two large storage lockers. Below deck the varnished teak interior bulkheads, cabinets, and joinery speak of the quality that goes into making the Catalina 380. Nine opening hatches assure abundant light and ventilation throughout the main cabin. The teak navigation desk is mid ships. It comes with a swivel chair and plenty of space for any one of the several available entertainment and navigation electronics packages. The owner's cabin aft is highlighted by the oversize double berth, with numerous storage bins and lockers within arm's reach. Two separate dressing areas, each with upholstered seat and hanging locker, allow plenty of room to move about in this private retreat. The spacious owner's cabin features numerous lockers, cabinets, and drawers. The reading lamps, abundant natural light and ventilation, and comfortable seating make this cabin an inviting retreat. The L-shaped galley is built for efficient food preparation and quick, easy clean-up. There is plenty of galley storage in the four large over-counter cabinets; the large, dry food bin; and the generous ice box. Both forward and aft cabins have double berths and generous hanging lockers, with plenty of adjacent storage. A private entrance from the owner's cabin leads to the ultra modern head. This bright, airy compartment has the luxury of an enclosed shower with one-piece acrylic door. A separate sink and vanity is provided for family or guests in the forward cabin, along with numerous drawers and shelves for storage of personal items while aboard. The galley has all the latest conveniences and the space to prepare gourmet meals aboard. Amenities include a three-burner stainless gimbaled LP gas stove with oven, polished stainless double sink, and truly cavernous icebox with convenient front access door. Meal preparation and clean-up are easy with custom molded one-piece countertops and an integrated countertop butcher block - trash chute.
Equipment List

Catalina 380 Specifications - Standard Equipment Spars and Rigging - Full Batten Mainsail, Dacron with Two Reef Points and Dutchman Flaking System - 135% Furling Genoa with UV Protection - Complete Standing and Running Rigging - Internal Pre-Stretched Dacron Rope Halyards - PVC Wiring Conduit with Messenger in Mast - Anodized Mast and Boom Sail Handling and Equipment - Two, Two-Speed Self Tailing Primary Winches - Two, Two-Speed Self Tailing Mainsheet - Halyard Winches - Second Jib Halyard led Aft with Sheet Stopper - Double Ended Mainsheet System - 10" Winch Handle - Mainsheet Traveler with Car and Adjuster System - Genoa Tracks Inboard - All Halyards Led Aft, to Sheet Stoppers - Headsail Furling Gear - Single Line Mainsail Reefing System - Boom Vang, Solid Adjustable Type Propulsion, Steering & Controls - Steering, Brake, Engine Controls, on Pedestal - 40 h.p. Four Cylinder Fresh Water Cooled, Diesel Engine with Reduction Gear - Bronze Propeller, Two Blade - Sea Water Strainer for Engine Cooling - Fully Instrumented Engine Panel - Stainless Steel Destroyer Wheel - Binnacle Compass, 5", Lighted - Emergency Tiller Features and Deck Hardware - One Piece Fiberglass Deck, White with Grey Two-tone - Comfortable Cockpit with Contoured Coamings - Fiberglass Cockpit Table with Two Leaves - Walk Through Stern with Transom Boarding Platform and Storage Lockers - Stern Boarding Ladder with Contour Treads - Double Lifelines with Gates Port and Starboard - Mooring Cleats, Two Fore and Two Aft - Midship Springline Cleats - Molded-in Gel Coat Waterline, Midwatch Blue Midwatch Blue Sheer Stripes - Large Anchor Roller on Foredeck - Electric Anchor Windlass with Foot Switch - Anchor Locker Forward with Provision for Below Deck Chain and Rode Storage - Stainless Steel Hand Rails on Cabin Top - Stern Rails with Observation Seats, Port and Starboard Interior - Varnish Finish on Interior - Teak Veneer and White Laminate Bulkheads and Trim - Cabin Window Shades - Custom Molded Counter Tops - Navigation Station with Chart Table - Owner's Stateroom Aft with Large Double Berth, Hanging Lockers, Bureau with Drawers, and Private Access to Head areas - Teak and Holly Veneer Sole - Inner Spring Mattresses on Fore and Aft Berths with Custom Fitted Sheets Galley - Refrigeration, D.C. Powered System - Double Stainless Steel Sinks - Gimbaled Three Burner Stove with Oven, Stainless Steel, LPG - Fiberglass Lined Icebox with Racks and Front Opening Door - Pump for Overboard Discharge of Icebox Plumbing System - Pressure Water Distribution System with Filter at Pump - Hot Water Heater with Engine Heat Exchanger and Electric Element - Manual Bilge Pump - Electric Bilge Pump - Marine Head with Holding Tank and Deck Outlet - Macerator Pump for Overboard Discharge of Holding Tank - Vanity Counter with Sink and Medicine Chest in Forward Cabin - Head Aft with Vanity, Medicine Chest and Separate Stall Shower Electrical System - Two Heavy Duty 12 Volt Marine Batteries - Battery Charger - International Running Lights - 115 Volt, 30 Amp Shore Power - Masthead, Foredeck and Steaming Lights - 12 Volt Lighting throughout - Custom 115 Volt AC - 12 Volt DC Electric Panel - Circuit Breakers for AC and DC Electrical Circuits - Ground Fault Circuit Protection - AC Duplex Receptacles throughout

Galley
  • 3 Burner Propane Stove & Oven
  • Adler Barbour Refrigeration
  • Hot & Cold Pressure Water
  • Samsung Microwave Oven
  • GFCI Circuit Protection
Sails & Rigging
  • In Mast Furling
  • 135% Genoa-New 2016
  • Schaeffer 3100 Furler
  • Asymetrical Spinnaker 2010
  • Lewmar ST 54 Primary Winches
  • Lewmar ST 40 Secondary Winches
  • Garhauer Riged Boom Vang
Electrical
  • 110 Volt System with Power Cords 2-30amp services
  • 12 Volt Ships system
  • 2 4D House Batteries- New 2015
  •  Starting Battery-New 2020
  • Charles 5000 Battery Charger
  • 80 Amp Alternator
  • Pro Mariner Galvanic isolator
  • Complete set 110 Volt Adapters



Electronics
  • Garmin 540 Color Chartplotter 2010
  • Raymarine Below Deck Smart Pilot
  • Raymarine ST60 Speed & Depth Indicators
  • Raymarine ST 60 Wind Speed & Direction
  • Horizon Eclipse VHF Radio with Cockpit RAM
  • Ritchie Powerdamp Compass
  • Jensen KD SX980 CD player & stereo
Additional Information
  • Reverse Cycle Heat & Air Conditioning
  • Maxwell Electric Anchor Windlass
  • Bruce 33# Anchor
  • Mantis 45 # Anchor 2016
  • Cockpit Cushions
  • Electric Flush Head
  • Cockpit Table 2018
  • Dock Lines & Fenders
  • Magma BBQ Grill 2019
  • Manuals
  • 3 12Volt Hella Fans
  • Full winter cover w/frame 2013
  • Steel Cradle
  • Bombardier Inflatable Dinghy with Ourboard
  • Screens for all ports and hatches
  • 3 solar vents
